Options tab

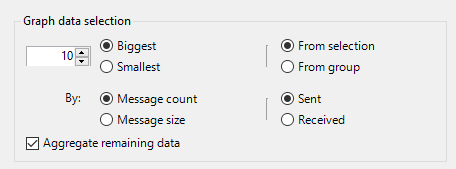

Graph settings

Compose the content of the graph to display in the report.

Option Description
Show only Select this check box to display a top n.
[Number], Biggest, Smallest Enter the number of entries to be displayed in the report. For example, enter 10 and select the Biggest radio button if you wish to obtain a top 10 correspondents in the selection/group.
From selection Select this radio button to obtain a top n of all items selected in the Selection tab.
From group

Select this radio button to obtain a top n for each group selected in the Group tab. For example, you will obtain a report showing the 5 correspondents (i.e. SMTP servers) for each server

  • if you selected a top 5, Biggest, From group,
  • if you chose to group results by server.
Aggregate remaining data Select this check box to display the cumulated number/cumulated size of messages that are not part of the top n.
By: Message count, Message size, Sent, Received Select these radio buttons to choose the type of traffic data and the traffic direction to be displayed in the report.

Tabular data settings

Compose the content of the table to display in the report.

Option Description
Show only Select this check box to display a top n.
[Number], Biggest, Smallest Enter the number of entries to be displayed in the report. For example, enter 10 and select the Biggest radio button if you wish to obtain a top 10 correspondents in the selection/group.
From selection Select this radio button to obtain a top n of all items selected in the Selection tab.
From group

Select this radio button to obtain a top n of each group selected in the Group tab. For example, you will obtain a report showing the top 5 correspondents for each server

  • if you selected a top 5, Biggest, From group,
  • if you chose to group results by server.
By: Message count, Message size, Sent, Received Select these radio buttons to choose the type of traffic data and the traffic direction to be displayed in the report.

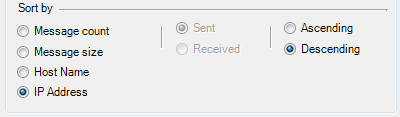

Sort by

Select the primary sort key and the sort order to apply to the report.

Option Description
Message count Select this radio button to sort SMTP servers by message count (smallest to largest if Ascending, largest to smallest if Descending).
Message size Select this radio button to sort SMTP servers by message size (smallest to largest if Ascending, largest to smallest if Descending).
Host Name Select this radio button to sort SMTP server names in alphabetical order (A to Z if Ascending, Z to A if Descending).
IP Address Select this radio button to sort SMTP server names by IP address (smallest to largest if Ascending, largest to smallest if Descending).
