Set the detail level for the mailboxes you have selected.
| Option | Description |
|---|---|
| Totals only |
Display only totals, without listing the selected mailboxes. |
| Recipient | Display traffic data for each selected recipient. |

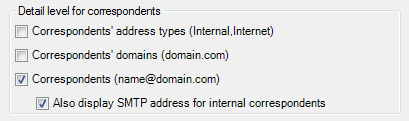

| Option | Description |
|---|---|
| None |
Do not display any detail about correspondents. |
| Correspondent Type (Internal, Internet...) | Separate correspondents by type based on their address. If you select this mailbox, internal and external traffic will be separately displayed. |
| Correspondent domain (domain.com) | Display the SMTP domain for external correspondents. |
| Correspondents (john@domain.com) | Display the full SMTP address for external correspondents. |
| Display Correspondents' Address | Display the full SMTP address for internal correspondents as well. If this check box is not selected, the report will only display their display name. |
To find out what consequences on results the choice of a detail level may have, see How is traffic calculated.
Select a mailbox attribute from the drop-down list. It will be displayed for each mailbox.
Select the traffic direction to be displayed in the report: sent messages, received messages, or the total.
| Option | Description |
|---|---|
| Sent | Display sent messages. |
| Received | Display received messages. |
| Total | Display the total of sent and received messages. |
